Kuycon P27Z Specifications
Display finish
Glossy anti-glare coating
Display
Display 5K
27-inch 5K LED-backlit display with IPS technology
Native resolution: 5120-by-2880 pixels (14.7 million pixels), 218 pixels per inch
Aspect ratio: 16:9
Dual-mode refresh — user choosable
5120×2880 at 180 Hz — peak image quality at fluid motion
2560×1440 at 330 Hz — maximum responsiveness for competitive games
Response time: 1 ms (GtG)
High Dynamic Range (HDR)
Brightness: 600 nits
Contrast ratio: 1500:1
Color: 99% sRGB, 98% DCI-P3, 10-bit color (FRC), 1.07 billion colors
27-inch 5K LED-backlit display with IPS technology
Native resolution: 5120-by-2880 pixels (14.7 million pixels), 218 pixels per inch
Aspect ratio: 16:9
Dual-mode refresh — user choosable
5120×2880 at 180 Hz — peak image quality at fluid motion
2560×1440 at 330 Hz — maximum responsiveness for competitive games
Response time: 1 ms (GtG)
High Dynamic Range (HDR)
Brightness: 600 nits
Contrast ratio: 1500:1
Color: 99% sRGB, 98% DCI-P3, 10-bit color (FRC), 1.07 billion colors
Audio
Built-in speakers — perforated-back version only
Integrated speakers are available exclusively on the version with the perforated rear panel. Other variants ship without internal audio.
Integrated speakers are available exclusively on the version with the perforated rear panel. Other variants ship without internal audio.
Dimensions and weight
Height: 36.0 cm display
Width: 61.8 cm
Depth: 2.2 cm display
Weight: 5.5 kg display
Width: 61.8 cm
Depth: 2.2 cm display
Weight: 5.5 kg display
Connectivity

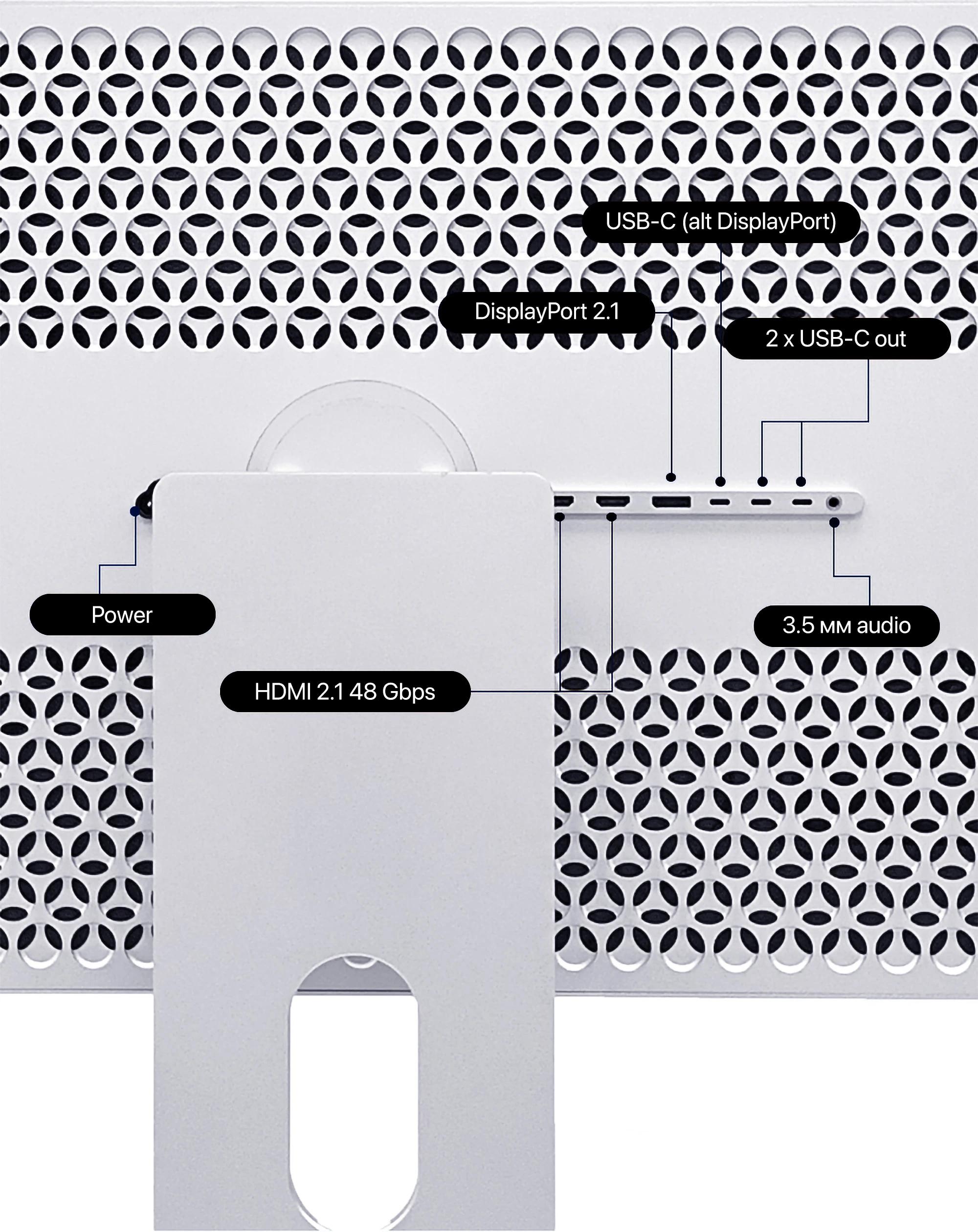

One upstream USB-C (DisplayPort Alt Mode, ~40 Gbps for 5K video, compatible with Thunderbolt 4/5 and USB4 ports, up to 100 W PowerDelivery), DisplayPort 2.1 (UHBR20, 80 Gbps, with DP 1.4 HBR3 DSC fallback), two HDMI 2.1 (FRL 48 Gbps), two USB-C downstream data ports (USB 2.0, 5 V 2 A), and 3.5 mm audio jack
One upstream USB-C port delivers up to 100 W PowerDelivery (20 V 5 A) for one-cable laptop charging
Refresh bandwidth
5120×2880 at 180 Hz — HDMI 2.1 FRL 48 Gbps or DisplayPort 2.1 UHBR20 DSC (needs a high-performance discrete GPU such as the RTX 50 series; otherwise falls back to 165 / 144 Hz)
5120×2880 at 165 Hz — USB-C / DisplayPort: DP 1.4 HBR3 DSC or DP 2.1 UHBR10 / 13.5 / 20
5120×2880 at 144 Hz — bandwidth-limited fallback on lower-end GPUs
5120×2880 at 60 Hz — Apple Silicon M1–M3 and Intel Tiger Lake+ Macs (one cable over USB-C)
2560×1440 at 330 Hz — DisplayPort 2.1 UHBR or HDMI 2.1 FRL
One upstream USB-C port delivers up to 100 W PowerDelivery (20 V 5 A) for one-cable laptop charging
Refresh bandwidth
5120×2880 at 180 Hz — HDMI 2.1 FRL 48 Gbps or DisplayPort 2.1 UHBR20 DSC (needs a high-performance discrete GPU such as the RTX 50 series; otherwise falls back to 165 / 144 Hz)
5120×2880 at 165 Hz — USB-C / DisplayPort: DP 1.4 HBR3 DSC or DP 2.1 UHBR10 / 13.5 / 20
5120×2880 at 144 Hz — bandwidth-limited fallback on lower-end GPUs
5120×2880 at 60 Hz — Apple Silicon M1–M3 and Intel Tiger Lake+ Macs (one cable over USB-C)
2560×1440 at 330 Hz — DisplayPort 2.1 UHBR or HDMI 2.1 FRL
Compatibility
Mac
Mac with Apple Silicon M4 / M5: 5K at 165 Hz, one cable over USB-C (DisplayPort Alt Mode)
Mac with Apple Silicon M1 / M2 / M3: 5K at 60 Hz, one cable over USB-C (DisplayPort Alt Mode)
iMac / Mac mini 2022 and later: 5K at 165 Hz
Intel Mac 2020 and later (Core 10th Gen Tiger Lake+): 5K at 60 Hz, one cable over USB-C (DisplayPort Alt Mode)
iPad Pro (all models): 5K at 60 Hz, one cable over USB-C (DisplayPort Alt Mode)
5K at 180 Hz requires HDMI 2.1 FRL or DisplayPort 2.1 UHBR20 — not available on any Mac. An external eGPU can reach 180 Hz.
PC — Nvidia
Blackwell (RTX 50 series): 5K at 180 Hz via DisplayPort 2.1 UHBR20 DSC
Ada Lovelace (RTX 40 series): 5K at 165 Hz via DP 1.4 HBR3 DSC or HDMI 2.1; 180 Hz via HDMI 2.1 FRL
Ampere (RTX 30 series): 5K at 165 Hz via DP 1.4 HBR3 DSC or HDMI 2.1
Turing (GTX 1650 / RTX 20 series): 5K at 165 Hz (cards with USB-C VirtualLink can connect directly over USB-C)
Pascal and older: not supported at 5K
PC — AMD
RDNA 4 (RX 7700–RX 9070 XT): 5K at 165 Hz via DP 2.1 UHBR13.5 DSC
RDNA / RDNA 2 / RDNA 3 (RX 5500–RX 6900 XT): 5K at 165 Hz
Polaris / Vega: not supported at 5K
PC — Intel
Intel Arc discrete GPUs: 5K at 165 Hz
Intel UHD 730 / 750 / 770 (desktop iGPU): 5K at 144 Hz, one cable over USB-C (Thunderbolt 4 host port)
Intel 11th Gen Tiger Lake Iris Xe: 5K at 60 Hz, one cable over USB-C (Thunderbolt 3 host port)
Intel 10th Gen UHD iGPU: not supported at 5K
Consoles and other devices
Sony PS5 / PS4 Pro, Microsoft Xbox Series X/S: 4K at 120 Hz HDR via HDMI 2.1
Nintendo Switch, Samsung Galaxy S/Note series, Huawei Mate/P series: screen mirror or desktop-extension mode over USB-C
Mac with Apple Silicon M4 / M5: 5K at 165 Hz, one cable over USB-C (DisplayPort Alt Mode)
Mac with Apple Silicon M1 / M2 / M3: 5K at 60 Hz, one cable over USB-C (DisplayPort Alt Mode)
iMac / Mac mini 2022 and later: 5K at 165 Hz
Intel Mac 2020 and later (Core 10th Gen Tiger Lake+): 5K at 60 Hz, one cable over USB-C (DisplayPort Alt Mode)
iPad Pro (all models): 5K at 60 Hz, one cable over USB-C (DisplayPort Alt Mode)
5K at 180 Hz requires HDMI 2.1 FRL or DisplayPort 2.1 UHBR20 — not available on any Mac. An external eGPU can reach 180 Hz.
PC — Nvidia
Blackwell (RTX 50 series): 5K at 180 Hz via DisplayPort 2.1 UHBR20 DSC
Ada Lovelace (RTX 40 series): 5K at 165 Hz via DP 1.4 HBR3 DSC or HDMI 2.1; 180 Hz via HDMI 2.1 FRL
Ampere (RTX 30 series): 5K at 165 Hz via DP 1.4 HBR3 DSC or HDMI 2.1
Turing (GTX 1650 / RTX 20 series): 5K at 165 Hz (cards with USB-C VirtualLink can connect directly over USB-C)
Pascal and older: not supported at 5K
PC — AMD
RDNA 4 (RX 7700–RX 9070 XT): 5K at 165 Hz via DP 2.1 UHBR13.5 DSC
RDNA / RDNA 2 / RDNA 3 (RX 5500–RX 6900 XT): 5K at 165 Hz
Polaris / Vega: not supported at 5K
PC — Intel
Intel Arc discrete GPUs: 5K at 165 Hz
Intel UHD 730 / 750 / 770 (desktop iGPU): 5K at 144 Hz, one cable over USB-C (Thunderbolt 4 host port)
Intel 11th Gen Tiger Lake Iris Xe: 5K at 60 Hz, one cable over USB-C (Thunderbolt 3 host port)
Intel 10th Gen UHD iGPU: not supported at 5K
Consoles and other devices
Sony PS5 / PS4 Pro, Microsoft Xbox Series X/S: 4K at 120 Hz HDR via HDMI 2.1
Nintendo Switch, Samsung Galaxy S/Note series, Huawei Mate/P series: screen mirror or desktop-extension mode over USB-C
What's in the Box
Monitor
VESA 100×100 adapter
Remote control
Power cord (1.5 m)
USB-C cable (1 m)
DisplayPort cable (1.8 m)
HDMI cable (1.5 m)
USB-C to USB-A adapter x 2
Flash drive with documentation
VESA 100×100 adapter
Remote control
Power cord (1.5 m)
USB-C cable (1 m)
DisplayPort cable (1.8 m)
HDMI cable (1.5 m)
USB-C to USB-A adapter x 2
Flash drive with documentation
Power and operating requirements
Line voltage: 100V to 240V AC
Frequency: 50Hz to 60Hz, single phase
Power: 60 W (max 170 W with PowerDelivery charging)
Frequency: 50Hz to 60Hz, single phase
Power: 60 W (max 170 W with PowerDelivery charging)
